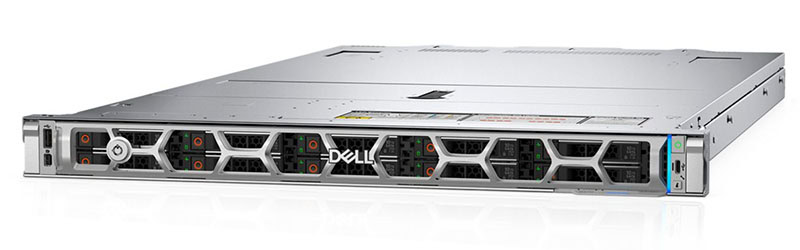

Dell PowerEdge R470 Server
Engineered to Boost Data Center Productivity
The R470 features power with balanced performance
- One Intel Xeon 6 processor with up to 144 cores
- Up to 2 x 16 Gen5 PCIe slots
- Max of 16 DDR5 DIMM slots
- 1U rack height
- Integrated Security
- Energy Star Compliant
Pricing Information
Prices will vary depending on the configuration of the device and the quantity of the devices you are looking to purchase. If you would like a formal quote, contact us.
Other Get a Quote Options:
Use our chat or call us at 1-866-230-MOJO (6656)
PowerEdge R470 Technical Guide
PowerEdge Rack Servers Quick Reference Guide
R470 Dimensions & Weight
- Height – 42.8 mm (1.69 inches)
- Width – 482 mm (19.0 inches)
- Depth: 815.14 mm (32.09 inches) without bezel; 816.92 mm (32.16 inches) with bezel
- Weight: 19.11 kg (42.13pounds)
Processor
- One Intel Xeon 6 processor
Drive Bays
- Up to 8 x EDSFF E3.S Gen5 NVMe (SSD) max 122.4 TB
- Up to 8 x 2.5-inch SAS/SATA/NVMe (SSD) max 122.4 TB
Front Ports
- 1 x USB 2.0 Type - C port
- 1 x USB 2.0 Type A port (optional)
- 1 x Mini-DisplayPort (optional)
- 1 x DB9 Serial (with front I/O configuration)
- 1 x Dedicated BMC Ethernet port (with front I/O configuration)
Rear Ports
- 1 x Dedicated BMC Ethernet port
- 2 x USB 3.1 Type A ports
- 1 x VGA
Maximizes rack utilization by offering more cores in a single socket
The R470 is ideal for cloud scale web and app microservices, data services, virtualization, and scale-out database workloads
You can seamlessly integrate the R470 into existing environments.
All Products Come With A Warranty
Product Warranty for New OEM Products:
All products quoted are covered by the Original Equipment Manufacturer's warranty. If you would like specific warranty details, start a chat with us, call us at 1-866-223-9313 or reach out to your sales representative to discuss options.
Product Warranty for Used and Secondary Market Products:
All products quoted are covered by Mojo Systems’ Limited 90-day warranty.
Additional warranty options are available upon request:
- Extend your Mojo warranty to 2, 3, 4, 5+ years
- Enhance your Mojo warranty options with Mojo’s Third Party Hardware Support
If you would like to discuss Mojo’s product warranty, start a chat with us, call us at 1-866-223-9313 or reach out to your sales representative to discuss options.
Shipping Information
Shipping rates for this product will vary depending on the shipping method (overnight, 2-day, ground, etc.).
For specific shipping rates, start a chat with us, call us, or reach out to your sales representative to discuss options.
Mojo Systems offers personalized support at up to 70% off OEM prices. Choose 9/5/NBD, 7/24/4 or a customized service level agreement.
Cancellation/Return Policies
Cancellation or Return Policy for New OEM Products:
All products/services quoted are covered by the Original Equipment Manufacturer's cancellation and return policy.
Cancellation or returns are subject to the approval by the manufacturer and requests must be received by the manufacturer within 30 days of the order shipping date.
If a cancellation or return request is approved, the manufacturer may require a restocking/cancellation fee.
If you need to cancel or return your purchase, start a chat with us, call us at 1-866-223-9313 or reach out to your sales representative to discuss options.
Cancellation or Return Policy for Used or Secondary Market Products:
All products/services quoted are covered by Mojo Systems’ cancellation or return policy.
Cancellations or returns are subject to the approval by Mojo Systems and will only be considered on unopened boxes.
Cancellation or return requests must be received by Mojo Systems within 30 days of the order shipping date.
If a cancellation or return request is approved, Mojo may require a restocking/cancellation fee.
If you need to cancel or return your purchase, start a chat with us, call us at 1-866-223-9313 or reach out to your sales representative to discuss options.
Comparison Chart - R440, R450, R470 & R640, R650
| Model | Form Factor | Processor | Cores/Processor | Memory |
|---|---|---|---|---|
| R440 | Rack 1U | Up to two Intel Xeon Scalable processors | Up to 28 | 16 DDR4 DIMM slots, Supports RDIMM /LRDIMM |
| R450 | Rack 1U | Up to two 3rd Generation Intel Xeon Scalable processors | Up to 24 | 16x RDIMM |
| R470 | Rack 1U | One Intel Xeon 6 processor | Up to 144 | 16 DDR5 DIMM slots, RDIMM, speeds up to 6400MT/s Supports registered ECC DDR5 DIMMs only |
| R640 | Rack1U | Up to two Intel Xeon Scalable processors | Up to 28 | 24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666MT/s, 3TB max Up to 12 NVDIMM, 192 GB Max Supports registered ECC DDR4 DIMMs only Supports registered ECC DDR4 DIMMs only |
| R650 | Rack1U | Up to two 3rd Generation Intel Xeon Scalable processors | Up to 40 | 32 DDR4 DIMM slots, supports RDIMM 2 TB max or LRDIMM 4 TB max, speeds up to 3200 MT/s Up to 16 Intel Persistent Memory 200 series (BPS) slots, 8 TB max Supports registered ECC DDR4 DIMMs only |
