Dell PowerEdge R670 Server
Improved Power Efficiency & Rack Density
The R670 offers a balance of advanced computing and design efficiencies
- Two Intel Xeon 6 processors
- Up to 144 cores per processor
- Up to 2 x 16 Gen5 PCIe slots
- 32 DDR5 DIMM slots
- 1U rack height
Pricing Information
Prices will vary depending on the configuration of the device and the quantity of the devices you are looking to purchase. If you would like a formal quote, contact us.
Other Get a Quote Options:
Use our chat or call us at 1-866-230-MOJO (6656)
PowerEdge R670 Technical Guide
PowerEdge Rack Servers Quick Reference Guide
R670 Dimensions & Weight
- Height – 42.8 mm (1.69 inches)
- Width – 482 mm (18.98 inches)
- Depth: 815.14 mm (32.09 inches) without bezel; 816.92 mm (32.20 inches) with bezel
- Weight: 20.42 Kg (45.02 pounds)
Processor
- Two Intel Xeon 6 processors
Drive Bays
- Up to 8 x EDSFF E3.S Gen5 NVMe (SSD) max 122.4 TB
- Up to 8 x 2.5 inch SAS/SATA/NVMe (SSD) max 245.6 TB
Front Ports
- 1 x USB 2.0 Type C port
- 1 x USB 2.0 Type A port (optional)
- 1 x Mini-DisplayPort (optional)
- 1 x DB9 Serial (with front I/O configuration)
- 1 x Dedicated ethernet port for iDRAC management

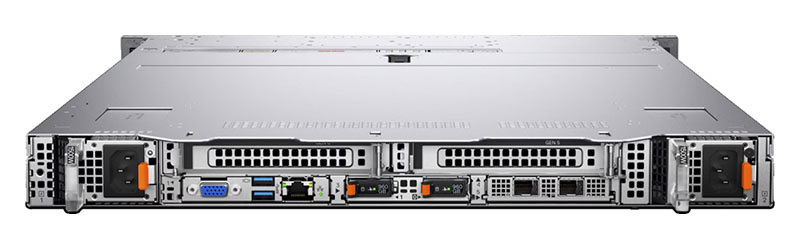

Rear Ports
- 1 x Dedicated ethernet port for iDRAC management
- 1 x VGA
- 2 x USB 3.1 Type A ports
All-flash SDS, online transaction processing, cloud-native applications, virtualizations, high density deployments
The R670 was built for enterprise and scalable infrastructures, and its standardization allows it to easily integrate into existing environments. Dell's Smart Power and Cooling Technology (a feature of the R670) translates to long-term operational savings.
All Products Come With A Warranty
Product Warranty for New OEM Products:
All products quoted are covered by the Original Equipment Manufacturer's warranty. If you would like specific warranty details, start a chat with us, call us at 1-866-223-9313 or reach out to your sales representative to discuss options.
Product Warranty for Used and Secondary Market Products:
All products quoted are covered by Mojo Systems’ Limited 90-day warranty.
Additional warranty options are available upon request:
- Extend your Mojo warranty to 2, 3, 4, 5+ years
- Enhance your Mojo warranty options with Mojo’s Third Party Hardware Support
If you would like to discuss Mojo’s product warranty, start a chat with us, call us at 1-866-223-9313 or reach out to your sales representative to discuss options.
Shipping Information
Shipping rates for this product will vary depending on the shipping method (overnight, 2-day, ground, etc.).
For specific shipping rates, start a chat with us, call us, or reach out to your sales representative to discuss options.
Mojo Systems offers personalized support at up to 70% off OEM prices. Choose 9/5/NBD, 7/24/4 or a customized service level agreement.
Cancellation/Return Policies
Cancellation or Return Policy for New OEM Products:
All products/services quoted are covered by the Original Equipment Manufacturer's cancellation and return policy.
Cancellation or returns are subject to the approval by the manufacturer and requests must be received by the manufacturer within 30 days of the order shipping date.
If a cancellation or return request is approved, the manufacturer may require a restocking/cancellation fee.
If you need to cancel or return your purchase, start a chat with us, call us at 1-866-223-9313 or reach out to your sales representative to discuss options.
Cancellation or Return Policy for Used or Secondary Market Products:
All products/services quoted are covered by Mojo Systems’ cancellation or return policy.
Cancellations or returns are subject to the approval by Mojo Systems and will only be considered on unopened boxes.
Cancellation or return requests must be received by Mojo Systems within 30 days of the order shipping date.
If a cancellation or return request is approved, Mojo may require a restocking/cancellation fee.
If you need to cancel or return your purchase, start a chat with us, call us at 1-866-223-9313 or reach out to your sales representative to discuss options.
Comparison Chart - R440, R450, R470, R640, R650, R660, R670
| Model | Form Factor | Processor | Cores/Processor | Memory |
|---|---|---|---|---|
| R440 | Rack 1U | Up to two Intel Xeon Scalable processors | Up to 28 | 16 DDR4 DIMM slots, Supports RDIMM /LRDIMM |
| R450 | Rack 1U | Up to two 3rd Generation Intel Xeon Scalable processors | Up to 24 | 16x RDIMM |
| R470 | Rack 1U | One Intel Xeon 6 processor | Up to 144 | 16 DDR5 DIMM slots, RDIMM, speeds up to 6400MT/s Supports registered ECC DDR5 DIMMs only |
| R640 | Rack1U | Up to two Intel Xeon Scalable processors | Up to 28 | 24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666MT/s, 3TB max Up to 12 NVDIMM, 192 GB Max Supports registered ECC DDR4 DIMMs only Supports registered ECC DDR4 DIMMs only |
| R650 | Rack1U | Up to two 3rd Generation Intel Xeon Scalable processors | Up to 40 | 32 DDR4 DIMM slots, supports RDIMM 2 TB max or LRDIMM 4 TB max, speeds up to 3200 MT/s Up to 16 Intel Persistent Memory 200 series (BPS) slots, 8 TB max Supports registered ECC DDR4 DIMMs only |
| R660 | Rack 1U | Up to two 4th Generation Intel® Xeon® Scalable or Intel® Xeon® Max processors or Up to two 5th Generation Intel Xeon Scalable processors | Up to 56 or Up to 64 | 32 DDR5 DIMM slots, supports RDIMM 8 TB max, speeds up to 4800 MT/s Speeds up to 4800 MT/s on the 4th Generation Intel Xeon Scalable or Intel Xeon Max processors Speeds up to 5600 MT/s on the 5th Generation Intel Xeon Scalable processors Supports registered ECC DDR5 DIMMs only |
| R670 | Rack 1U | Two Intel Xeon 6 processors | Up to 144 cores per processor | 32 DDR5 DIMM slots, supports RDIMM 2 TB max, speeds up to 6400 MT/s Supports registered ECC DDR5 DIMMs only |
