Dell PowerEdge R770 Server
Drive Efficiency in Your Data Center
The R770 offers up to 1.69x better performance per watt than previous models.
- Two Intel Xeon 6 Processors
- Up to 4 x16 Gen5 PCIe slots
- 32 DDR5 DIMM slots
- 2U rack height
- Advanced cooling
Pricing Information
Prices will vary depending on the configuration of the device and the quantity of the devices you are looking to purchase. If you would like a formal quote, contact us.
Other Get a Quote Options:
Use our chat or call us at 1-866-230-MOJO (6656)
PowerEdge R770 Technical Guide
PowerEdge Rack Servers Quick Reference Guide
R770 Dimensions & Weight
- Height – 86.8 mm (3.42 inches)
- Width – 482 mm (18.97 inches)
- Depth: 801.51 mm (31.56 inches) without bezel; 802.40 mm (31.59 inches) with bezel
- Weight: 28.53 kg (62.89 lbs)
Processor
- Two Intel Xeon 6 Processors with up to 144 cores per processor
Front Drive Bays
- Up to 8 x EDSFF E3.S Gen5 NVMe (SSD) max 122.4 TB
- Up to 16 x EDSFF E3.S Gen5 NVMe (SSD) max 244.8 TB
- Up to 8 x 2.5 inch NVMe (SSD) max 245.6 TB
- Up to 16 x 2.5 inch SAS/SATA (SSD) max 61.44 TB
Front Ports
- 1 x USB 2.0 Type C port
- 1 x USB 2.0 Type A port (optional)
- 1 x Mini-DisplayPort (optional)
- 1 x DB9 Serial (with front I/O configuration)
- 1 x Dedicated ethernet port for iDRAC management

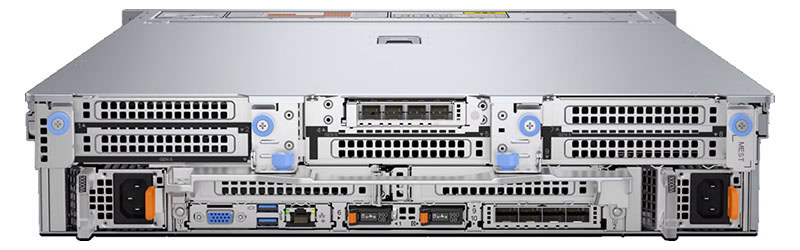

Rear Ports
- 1 x Dedicated ethernet port for iDRAC management
- 1 x VGA
- 2 x USB 3.1 Type A ports
Internal Port
- 1 x USB 3.1 Type A port
Ideal for software defined storage, microservices, large scale analytics, online transaction processing, max virtualizations, hyper converged and cloud native applications
The R770 has improved power efficiency with two Intel Xeon 6 processors with E-cores. The addition of GPU support further amplifies its computational power, ensuring high performance with lower energy use.
All Products Come With A Warranty
Product Warranty for New OEM Products:
All products quoted are covered by the Original Equipment Manufacturer's warranty. If you would like specific warranty details, start a chat with us, call us at 1-866-223-9313 or reach out to your sales representative to discuss options.
Product Warranty for Used and Secondary Market Products:
All products quoted are covered by Mojo Systems’ Limited 90-day warranty.
Additional warranty options are available upon request:
- Extend your Mojo warranty to 2, 3, 4, 5+ years
- Enhance your Mojo warranty options with Mojo’s Third Party Hardware Support
If you would like to discuss Mojo’s product warranty, start a chat with us, call us at 1-866-223-9313 or reach out to your sales representative to discuss options.
Shipping Information
Shipping rates for this product will vary depending on the shipping method (overnight, 2-day, ground, etc.).
For specific shipping rates, start a chat with us, call us, or reach out to your sales representative to discuss options.
Mojo Systems offers personalized support at up to 70% off OEM prices. Choose 9/5/NBD, 7/24/4 or a customized service level agreement.
Cancellation/Return Policies
Cancellation or Return Policy for New OEM Products:
All products/services quoted are covered by the Original Equipment Manufacturer's cancellation and return policy.
Cancellation or returns are subject to the approval by the manufacturer and requests must be received by the manufacturer within 30 days of the order shipping date.
If a cancellation or return request is approved, the manufacturer may require a restocking/cancellation fee.
If you need to cancel or return your purchase, start a chat with us, call us at 1-866-223-9313 or reach out to your sales representative to discuss options.
Cancellation or Return Policy for Used or Secondary Market Products:
All products/services quoted are covered by Mojo Systems’ cancellation or return policy.
Cancellations or returns are subject to the approval by Mojo Systems and will only be considered on unopened boxes.
Cancellation or return requests must be received by Mojo Systems within 30 days of the order shipping date.
If a cancellation or return request is approved, Mojo may require a restocking/cancellation fee.
If you need to cancel or return your purchase, start a chat with us, call us at 1-866-223-9313 or reach out to your sales representative to discuss options.
Comparison Chart - R740, R750, R760, R770
| Model | Form Factor | Processor | Cores/Processor | Memory |
|---|---|---|---|---|
| R740 | Rack 2U | Up to two Intel Xeon Scalable processors | Up to 28 | 24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666MT/s, 3TB max Up to 12 NVDIMM, 192 GB Max Supports registered ECC DDR4 DIMMs only |
| R750 | Rack 2U | Up to two 3rd Generation Intel Xeon Scalable processors | Up to 40 | 32 DDR4 DIMM slots, supports RDIMM 2 TB max or LRDIMM 8 TB max, speeds up to 3200 MT/s Up to 16 Intel Persistent Memory 200 series (BPS) slots, 8 TB max Supports registered ECC DDR4 DIMMs only |
| R760 | Rack 2U | Up to two 4th Generation Intel Xeon Scalable or Intel Xeon Max processors or Up to two 5th Generation Intel Xeon Scalable processors | Up to 56 or Up to 64 | 32 DDR5 DIMM slots, supports RDIMM 8 TB max Speeds up to 4800 MT/s on the 4th Generation Intel Xeon Scalable or Intel Xeon Max processors Speeds up to 5600 MT/s on the 5th Generation Intel Xeon Scalable processors Supports registered ECC DDR5 DIMMs only |
| R770 | Rack 2U | Two Intel Xeon 6 Processors | Up to 144 | 32 DDR5 DIMM slots, supports RDIMM 2 TB max, speeds up to 6400 MT/s Supports registered ECC DDR5 DIMMs only |
